Teltonika RUTXR1 Enterprise Rack-mountable Dual-SIM LTE & Fibre Internet Router

Teltonika RUTXR1 Enterprise Rack-mountable Dual-SIM LTE & Fibre Internet Router
Teltonika RUTXR1 Enterprise Rack-mountable Dual-SIM LTE & Fibre Internet Router
Teltonika RUTXR1 Enterprise Rack-mountable Dual-SIM LTE & Fibre Internet Router
Teltonika RUTXR1 Enterprise Rack-mountable Dual-SIM LTE & Fibre Internet Router
€4.88 Local IE Flat Rate Shipping (€6 w/ VAT)
Based on 0 reviews. - Write a review
€457.00
Ex Tax: €371.54
  • Stock: In Stock
  • Brand: Teltonika Networks
  • Model: RUTXR1
  • Weight: 1,786.00g
  • Dimensions: 175.00mm x 355.00mm x 60.00mm
  • MPN: RUTXR1

Available Options

Add to Cart
Add to Wish List
eSIM Capable Router/Gateway

Read more about eSIM on this page. You can contact us for MOQ details.

WEEE Recycling Charge

Included in the Price of this Product is the WEEE Recycling Charge.

Frequently Bought Together
Iot SIM Cards, have some advantages over regular SIM cards for certain applications. These type of SIMs are designed to connect devices (including Routers/Gateways) to the Internet of Things, which is a network of physical objects that can collect and share data without human intervention. Regular SIM cards, on the other hand, are mainly used for voice and data services on your phone. They are bound to one carrier network, which can limit your coverage and increase your costs. They also have dynamic IP addresses, which can make it harder to access and control your devices remotely.
More Antennas Here

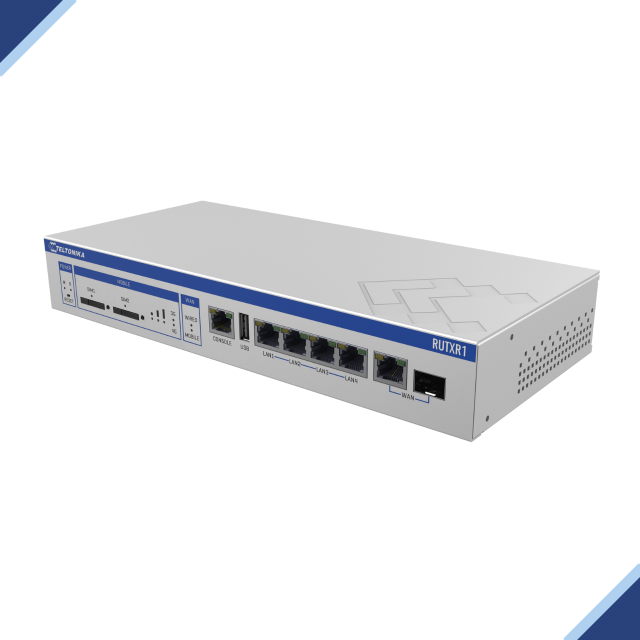

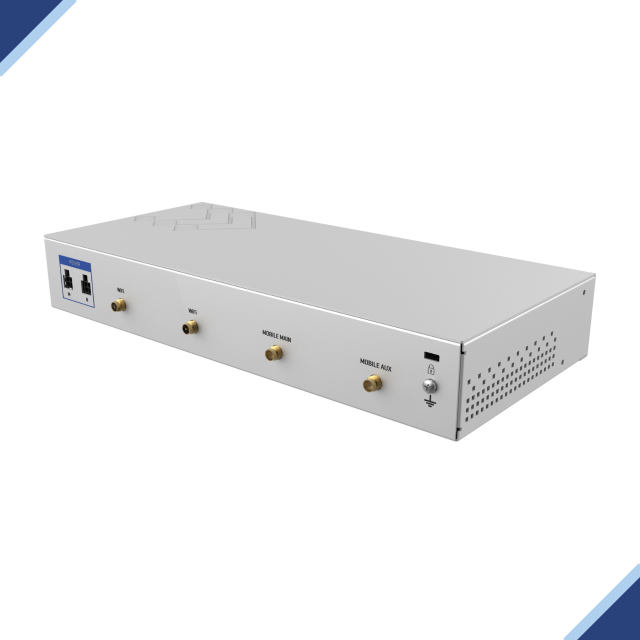

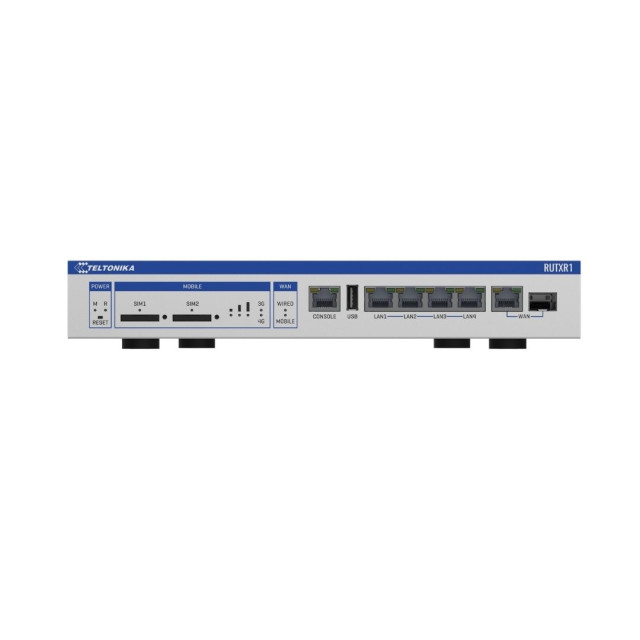

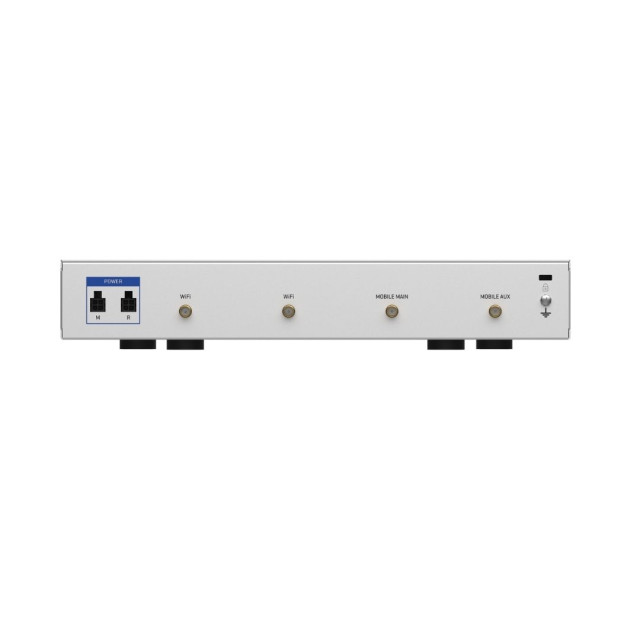

Unlock Unmatched Connectivity with the Teltonika RUTXR1!

The Teltonika RUTXR1 is a cutting-edge, rack-mountable LTE Cat 6 router designed to meet the demanding needs of modern enterprises. With its robust features and reliable performance, this router is perfect for businesses seeking seamless and ultra-reliable internet connectivity.

Target Audience: IT professionals, network administrators, and business owners who require a dependable and high-speed internet solution to ensure uninterrupted operations.

Key Features

Each feature is meticulously designed to solve common connectivity issues, enhance user experience, and ensure your network remains robust and efficient:

  • RutOS Software: Offers advanced networking solutions and easy management.
  • SFP Port: Allows for long-range fiber-optic communication, ideal for high-speed data transfer.
  • 5x Gigabit Ethernet Ports: Provides multiple high-speed wired connections for various devices.
  • Redundant Power Supplies: Ensures continuous operation by providing a backup power source.
  • Wave-2 802.11ac Dual Band Wi-Fi: Delivers fast and reliable wireless connectivity with speeds up to 867 Mbps.
  • Dual-SIM Capability: Automatically switches between SIM cards to maintain a stable connection, even in areas with weak signals.

Downloads

What’S In The Box?

Standard Goodies Inside:

  • RUTXR1
  • 8 x Screws
  • RMS Flyer
  • SIM needle
  • 18W Euro PSU
  • Rack mounting kit
  • 4 x Standing pads
  • Ethernet cable (1.5 m)
  • QSG (Quick Start Guide)
  • Packaging box (to keep or recycle)
  • 2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
  • 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)

How & Where to Buy?

Invest in the Teltonika RUTXR1 today and secure a seamless, efficient, and uninterrupted network experience for your business. Order now and take the first step towards superior connectivity!

To buy the RUTXR1 Dual SIM LTE Enterprise Router, you can drop by (requires appointment) our store located at Novatel Communications, Main Street, Buttevant, Co. Cork, Ireland.

To purchase online, simply click on the Add to Cart button, and then go through the fast, easy and secure checkout process. Payment is provided for your convenience via Stripe Payment Gateway. You can use any card supported by it (MasterCard, Visa, American Express, Diners, and more…).

How Will My Order Be Delivered?

Your order(s) will be shipped via express delivery and are normally delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a tracking information for your order, after it is dispatched. If you have any questions on your order status, please contact us.

Connect to the world with Teltonika Networks Cellular Routers, the most reliable and secure devices for your network. Get them now at Novatel, your Teltonika Distributor in Ireland.

Write a review

Please login or register to review

Get geeky with the Teltonika RUTXR1 Full Technical Specifications below.

Technical Specification

MOBILE
Mobile Module 4G (LTE) – Cat6 up to 300 Mbps, 3G – up to 42 Mbps
SIM Switch 2 SIM cards, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned)
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto replay, scheduled SMS (planned), SMPP (planned)
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List (planned) Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band Lock, Used band status display
APN Auto APN
Bridge Mode Direct connection (bridge) between mobile ISP and device on LAN
WIRELESS
Wireless Mode 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi Security WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
Wireless Hotspot Captive portal (Wi-Fi Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber 1 x SFP port (cannot work simultaneously with Ethernet WAN port)
LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX Crossover
CONSOLE
Console RS232 (RJ45) console port for router configuration and debuging
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
QoS / Smart Queue
Management (SQM)		 Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
DDNS 25+ service providers supported, others can be configured manually
Network Backup VRRP, Mobile, Wired, Fiber, and WiFi WAN options, each of which can be used as an automatic Failover
Load Balancing Balance Internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authentication Pre-shared key, digital certificates, X.509 Certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDoS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
Mobile Quota Control Custom data limits for both SIM cards
WEB Filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
Ipsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN DMVPN is a method of building scalable IPsec VPNs
SSTP SSTP client instance support
Zerotier ZeroTier VPN client support
MODBUS TCP SLAVE
ID Filtering Respond to one ID in range [1;255] or any
Allow Remote Access Allow access through WAN
Custom Registers Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality
MODBUS TCP MASTER
Supported Functions 01, 02, 03, 04, 05, 06, 15, 16
Supported Data Formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
MODBUS RTU MASTER (RS232) (PLANNED)
Supported Baud Rates From 300 to 115200
Supported Functions 01, 02, 03, 04, 05 (only for alarms), 06 (only for alarms), 15 (only for alarms), 16 (only for alarms)
Number of Data Bits From 5 to 8
Number of Stop Bits 1 or 2
Parity None, Even, Odd
Flow None, RTS/CTS, Xon/Xoff
MQTT GATEWAY
Gateways Allows sending commands and receiving data from Modbus Master trough MQTT broker
DATA TO SERVER
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
Modbus Modbus TCP Modbus TCP status/control
RMS Teltonika Remote Management Systems (RMS)
IOT PLATFORMS
Clouds of things Allows monitoring of Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 Mhz
RAM 256 MB, DDR3
FLASH storage 256 MB SPI Flash
FIRMWARE/CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
SERIAL
RS232 RJ45 connector, full RS232 (with RTS, CTS)
Serial functions Console (active by default), Modbus gateway, Modbus RTU master (planned), Serial OverIP, Modem mode (Full or partial) (planned), Ntrip client
USB
Data Rate USB 2.0
Applications Samba share, custom scripts (planned)
External Devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage Formats FAT, FAT32, NTFS
POWER
Connector 2 x 4 pin industrial DC power sockets for main and redundancy power sources
Input Voltage Range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
Power Consumption idle: <3W, max: 18W
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Console 1 x RJ45, RS232 communication
Fiber 1 x SFP port
Status LEDs 2 x WAN type, 2 x Mobile connection type, 3 x Mobile signal strength, 2 x active SIM, 10 x Ethernet status, 2 x Console status, 2x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 2 x 4 pin DC connector
Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi
USB USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other Grounding screw, lock
PHYSICAL SPECIFICATION
Casing Material Full steel housing
Dimensions (W x H x D) 272 x 42.6 x 122.6 mm
Weight 1.05Kg
Mounting Options Rack mounting, flat surface placement
OPERATING ENVIRONMENT
Operating Temperature -40°C to +70°C
Operating Humidity 10 % to 90 % non-condensing
